Choosing the CPU Cooler: Why 47mm Is the Magic Number
Low-profile cooling in an SFF homelab case is a game of millimeters. Here's why the 36mm class is too restrictive for an i5-12400, and why the Thermalright AXP90-X47 hits the sweet spot between thermal performance, noise, and case compatibility.
On this page
With the CPU, motherboard, and RAM decided, the build is taking shape. But before anything goes into the case, there’s a critical constraint to solve: how do you cool a 65W TDP processor inside an SFF case with limited vertical clearance?
The Sagittarius case supports CPU coolers up to approximately 55mm tall. That rules out every standard tower cooler on the market. We’re in low-profile territory — a world of slim heatsinks, 92mm fans, and careful millimeter management.
The Height Game
Low-profile CPU coolers are measured by total height: heatsink plus fan. The height determines two things:
- Will it physically fit in the case? If the cooler is taller than the case allows, the side panel won’t close. Simple.
- How much thermal mass and airflow can it provide? A taller cooler has more fin surface area and can use a thicker (quieter, higher-airflow) fan. Every millimeter of height directly translates to cooling capacity.
For the Sagittarius case, the sweet spot is clear: you want the tallest cooler that fits. Going shorter than necessary sacrifices thermal performance for no reason. Going too tall means the panel doesn’t close.
This narrows the field to two height classes: ~36mm and ~47mm.
The Contenders

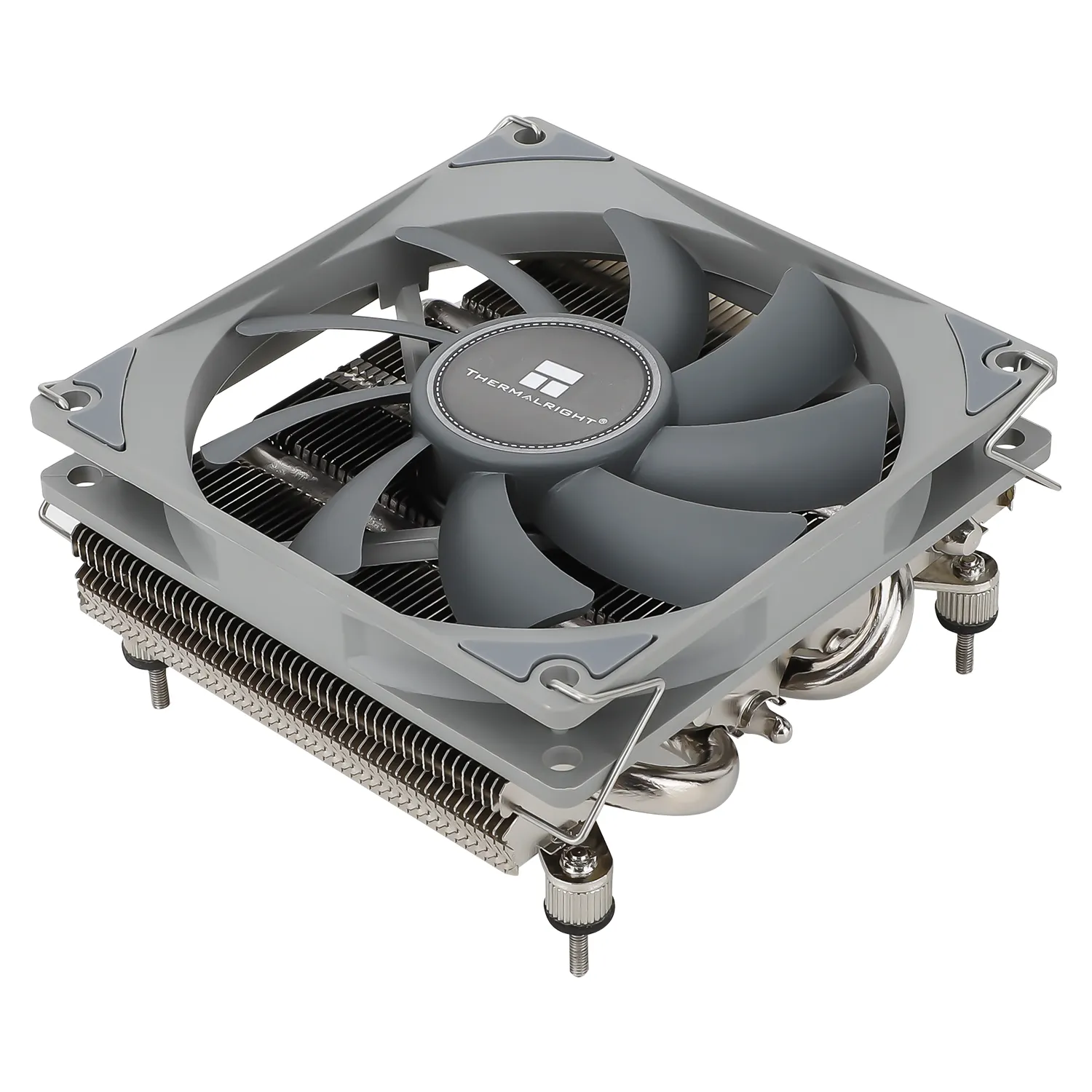

Thermalright AXP90-X36
| Spec | Value |
|---|---|
| Total Height | 36mm (21mm heatsink + 15mm fan) |
| Footprint | 94.5 × 95mm |
| Weight | 230g (with fan) |
| Heatpipes | 4× 6mm |
| Fan | TL-9015 (92mm, 15mm thick) |
| Fan Speed | Up to 2700 RPM |
| Noise | 22.4 dBA (max) |
| Socket | LGA 115X/1200/1700/1851, AM4/AM5 |
| Price | ~€20-25 |
The X36 is the go-to ultra-low-profile cooler. At only 36mm total height, it fits in almost any SFF case. Four 6mm heatpipes with a top-down 92×15mm fan. The TDP rating is officially around 65W — which technically matches the i5-12400’s PBP (Processor Base Power).
The problem: “Technically matches” isn’t the same as “handles comfortably.” The i5-12400 has a 65W PBP but a 117W MTP (Maximum Turbo Power). Under sustained multi-threaded load — compiling, transcoding, VM operations — it will draw well above 65W unless you manually limit it in the BIOS.
At 36mm, the heatsink has minimal thermal mass. The thin 15mm fan can move air, but the small fin stack saturates quickly under sustained load. Reviews consistently show that on a 65W TDP chip under real-world sustained loads, the X36 keeps things in check but runs the fan at high RPM to do it — which means noise. For a homelab server that runs 24/7, fan whine at 2700 RPM is not what you want.
The X36 is perfect for truly low-TDP chips: Intel N100, Celeron/Pentium processors, or Ryzen APUs that genuinely stay under 35-45W. For a 6-core i5 on Alder Lake, it’s asking too much of too little heatsink.

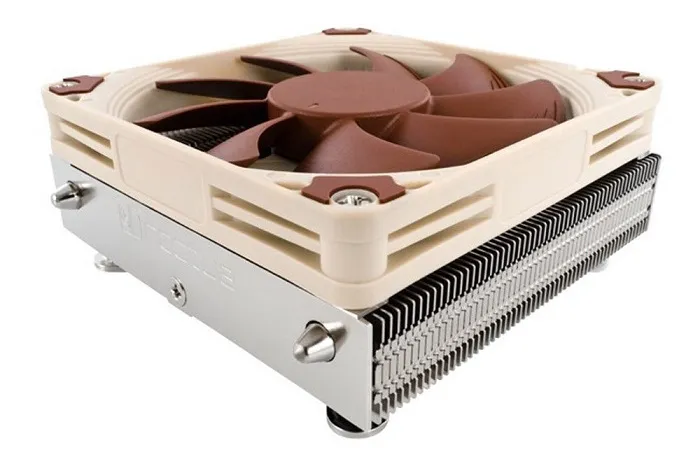

Noctua NH-L9i
| Spec | Value |
|---|---|
| Total Height | 37mm (23mm heatsink + 14mm fan) |
| Footprint | 95 × 95mm |
| Weight | 460g (with fan) |
| Heatpipes | 2× (U-shape, effectively 4 passes) |
| Fan | NF-A9x14 (92mm, 14mm thick) |
| Fan Speed | Up to 2500 RPM |
| Noise | 23.6 dBA (max) |
| Socket | LGA 115X/1200/1700 (variant-specific) |
| Price | ~€45-50 |
The Noctua is the premium name in low-profile cooling. The NH-L9i is legendary for its near-silent operation and build quality. The NF-A9x14 fan is whisper-quiet at low RPMs, and Noctua’s mounting system is impeccable.
The problem: It has even less cooling capacity than the AXP90-X36. Only two heatpipes (U-shape) versus four. The heatsink is compact and elegant, but physically limited. Noctua themselves explicitly state that the NH-L9i is not recommended for processors above 65W TDP — and they add the caveat that even at 65W, sustained loads may require accepting higher temperatures or higher fan speeds.
For quiet, low-power systems (which the NH-L9i was designed for), it’s phenomenal. For an i5-12400 that will regularly boost past 65W during transcoding operations, it’s undersized. At €45-50, you’re also paying a significant premium for the Noctua brand and fan quality, without getting more cooling capacity than the €20 Thermalright.
ID-Cooling IS-47-XT
| Spec | Value |
|---|---|
| Total Height | 47mm (33mm heatsink + 14mm fan) |
| Footprint | 92 × 92mm |
| Weight | ~320g (with fan) |
| Heatpipes | 4× 6mm |
| Fan | 92mm, 14mm thick |
| Fan Speed | Up to 2800 RPM |
| Noise | ~25 dBA (max) |
| Socket | LGA 115X/1200/1700, AM4/AM5 |
| Price | ~€25-30 |
Now we’re in the right height class. The IS-47-XT jumps to 47mm total height, gaining 11mm of additional heatsink over the X36 class. That’s 11mm more fin surface area, 11mm more thermal mass, significantly better sustained performance. Four 6mm heatpipes, same as the Thermalright.
Why I considered it: The IS-47-XT is well-reviewed in the SFF community. It fits the case, has adequate cooling capacity for a 65W-class CPU, and is reasonably priced.
Why I didn’t pick it: The fan is slightly louder than the Thermalright equivalent, and the mounting hardware is reportedly less refined. Build quality and finish are good but not quite at the Thermalright level. Minor differences — but for a few euros less, the Thermalright AXP90-X47 offered the same height class with a better fan.

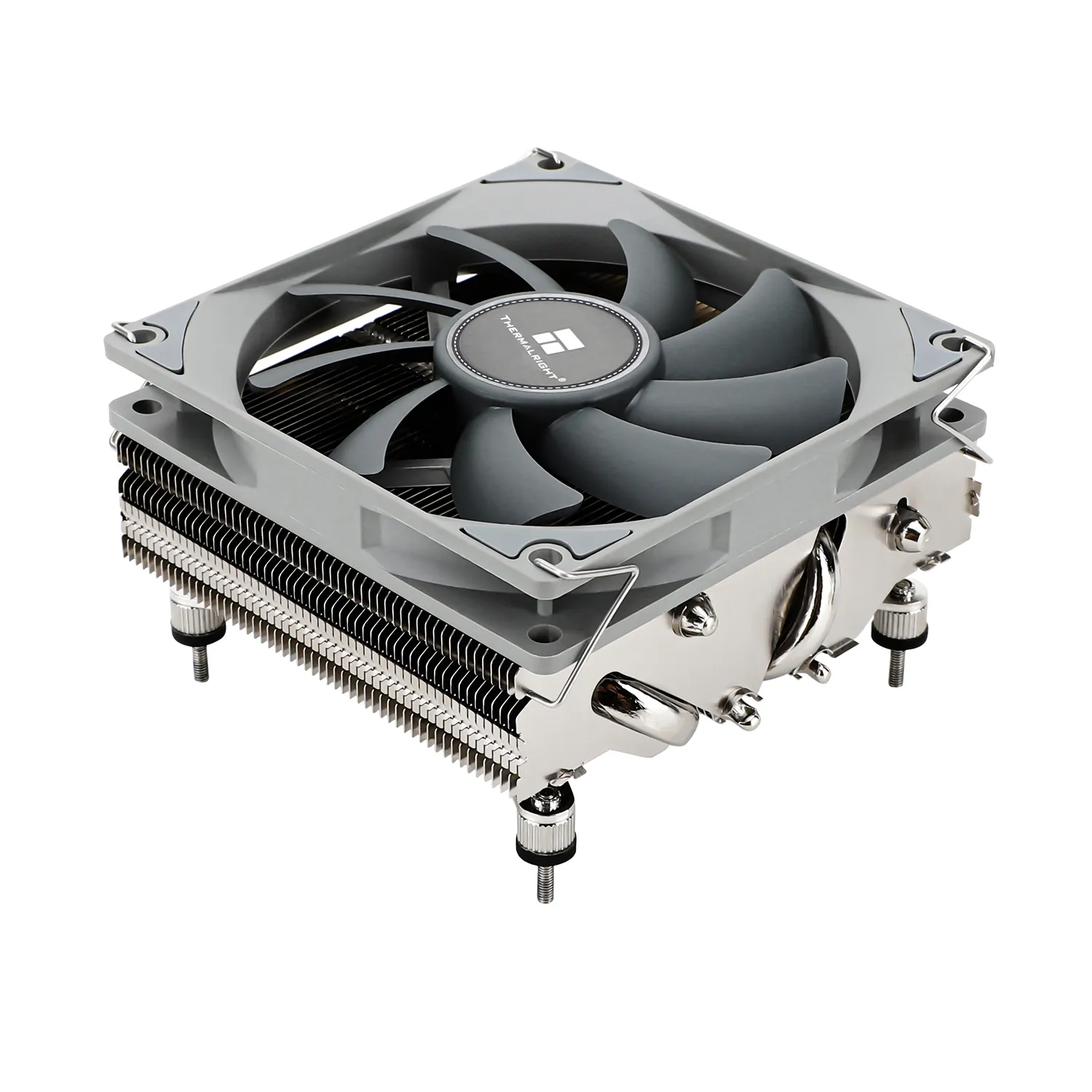

Thermalright AXP90-X47 Full (Winner)
| Spec | Value |
|---|---|
| Total Height | 47mm (32mm heatsink + 15mm fan) |
| Footprint | 94.5 × 95mm |
| Weight | 520g (with fan) |
| Heatpipes | 4× 6mm |
| Fan | TL-9015R (92mm, 15mm thick) |
| Fan Speed | Up to 2700 RPM |
| Noise | 22.4 dBA (max) |
| Socket | LGA 115X/1200/1700/1851, AM4/AM5 |
| Price | ~€20-25 |
The AXP90-X47 Full shares the same platform as the X36 — same 4× 6mm heatpipes, same mounting hardware, and a 92mm TL-9015R fan with identical specs. The key differences from the regular AXP90-X47 are the fully nickel-plated copper base (which gives it more thermal mass and significantly more weight at 520g vs 310g) and the heatsink height: 32mm instead of 21mm. Those 11mm make all the difference.
Why this won:
Better thermals where it matters. The taller fin stack absorbs and dissipates more heat during sustained loads. Where the X36 struggles and ramps the fan to maximum, the X47 can maintain comfortable temperatures with the fan running at moderate speeds. For an i5-12400 under sustained transcoding or VM compilation loads, the difference is 10-15°C — the gap between “thermally comfortable” and “thermal throttling.”
Lower noise. Same fan, but because the heatsink can do more of the heavy lifting, the fan doesn’t need to spin as fast. Under typical homelab loads (mostly idle, occasional burst), the X47 can keep the fan at 1000-1200 RPM — nearly inaudible. The X36 would need 1800-2200 RPM for the same temperatures.
Perfect fit. At 47mm, it’s well within the Sagittarius case’s ~55mm clearance limit. There’s margin for airflow between the cooler and the side panel, which actually improves thermals — a cooler pressed right against a panel with no gap has restricted airflow.
Value. At ~€20-25, it costs the same as the X36 and significantly less than the Noctua NH-L9i. There’s no price penalty for choosing the taller cooler — you’re literally getting more heatsink for the same money.
The 36mm vs 47mm Lesson
Here’s the comparison that makes the decision clear:
| Feature | AXP90-X36 | NH-L9i | IS-47-XT | AXP90-X47 |
|---|---|---|---|---|
| Height | 36mm | 37mm | 47mm | 47mm |
| Heatpipes | 4× 6mm | 2× (U-shape) | 4× 6mm | 4× 6mm |
| Fan | 92×15mm | 92×14mm | 92×14mm | 92×15mm |
| Max Noise | 22.4 dBA | 23.6 dBA | ~25 dBA | 22.4 dBA |
| i5-12400 Suitability | Marginal | Marginal | Good | Good |
| Price | ~€20-25 | ~€45-50 | ~€25-30 | ~€20-25 |
| Case Fit (<55mm) | ✅ | ✅ | ✅ | ✅ |
The 36-37mm coolers (AXP90-X36 and NH-L9i) are in the same thermal class: adequate for truly low-power chips, marginal for a 65W i5. The 47mm coolers (IS-47-XT and AXP90-X47) are a tier above: comfortable for 65W sustained loads with room to spare.
Between the two 47mm options, the Thermalright wins on noise (22.4 vs 25 dBA), price (€20 vs ~€25-30), and fan quality (the TL-9015R is a well-regarded low-profile fan).
The key insight: if your case can fit a 47mm cooler, there’s no reason to buy a 36mm one. The height difference costs nothing in money or compatibility, but gains meaningful thermal performance and noise reduction. Don’t buy a cooler smaller than your case requires.
Note on the “Full” variant: The AXP90-X47 Full differs from the regular AXP90-X47 primarily in its fully nickel-plated solid copper base, which provides better heat spreading and more thermal mass. This is reflected in the weight difference: 520g (Full) vs 310g (regular). The fan and heatsink dimensions are identical — the Full is simply built with more copper where it counts.
What’s Next
The thermal side is sorted. The last piece of the puzzle is the power supply — and in an SFF case, that means choosing between SFX form factors and figuring out how much wattage a homelab actually needs. Spoiler: it’s less than you think, but efficiency at low load matters more than peak wattage.
